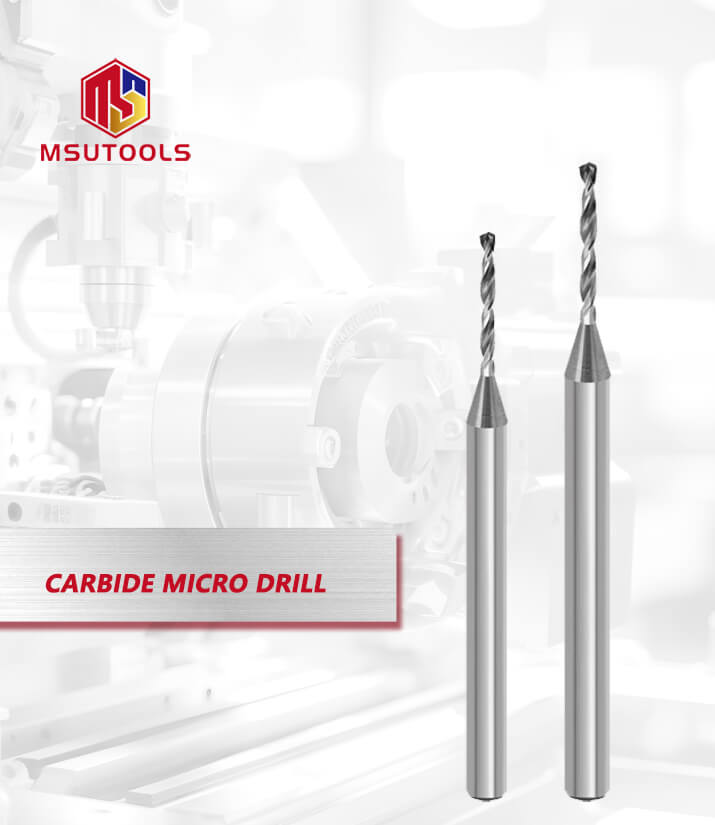

2026 Micro Drills Catalog

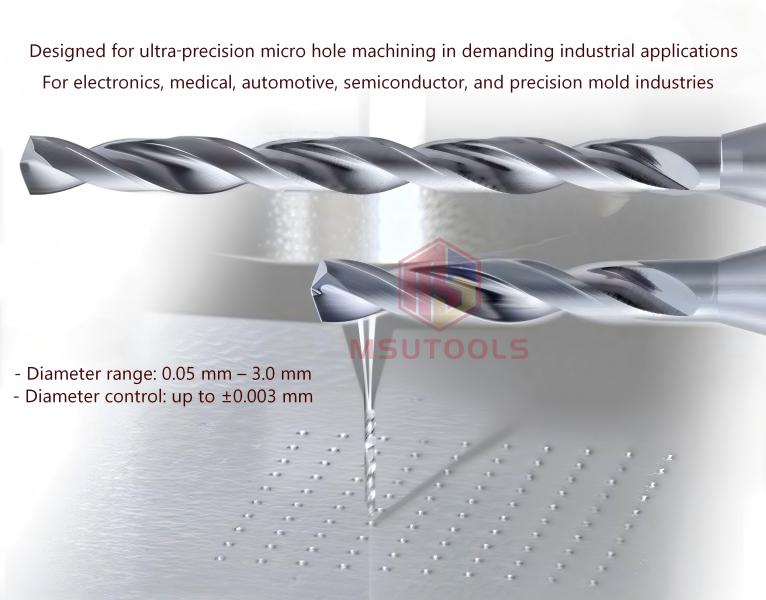

Ultra High Precision Solid Carbide Micro Drill Bits Diameter range: 0.03 mm – 3.0 mm Diameter control: up to ±0.003 mm Designed for: electronics, medical, automotive, semiconductor, and precision mold industries Nano‑grain solid carbide substrate
Recommended Materials
- Ultra-fine grain solid carbide substrate
- Advanced PVD coating for heat & wear resistance
- Precision ground geometry, tight tolerances
- Custom sizes & OEM manufacturing available
Product Description
The 2026 Micro Drills Catalog is a solid carbide drill built for fast penetration and accurate, high-quality holes. Manufactured from premium ultra-fine grain tungsten carbide, it combines high hardness with the toughness needed for consistent, chatter-free cutting and a superior surface finish. It is optimized for machining mold steel.
A rigid solid-carbide body minimizes deflection while the optimized point geometry self-centers for accurate hole position and roundness. Polished, high-capacity flutes clear chips quickly to prevent packing, and the wear-resistant coating maintains performance hole after hole.
Key Features
- Solid carbide body delivers rigid, accurate hole-making with minimal deflection
- Optimized point geometry centers instantly and reduces thrust
- Polished flutes promote fast, reliable chip evacuation
- Heat- and wear-resistant coating extends life in demanding materials
Applications
Ideal for hole-making in CNC machining centers and drilling operations. MSU Tools also manufactures custom geometries, coatings and dimensions to suit your specific material and application — contact our engineering team to discuss your requirements.
Specifications
| Feature | MSU326 Series | MSU426 Series |
|---|---|---|
| Target Materials | Copper, Aluminum, Fiberglass, Engineering Plastics | Cast Steel, Alloy Steel, Cast Iron, Stainless Steel, Titanium Alloys |
| Coating | Uncoated | Nano-coated |
| Diameter Range | 0.03 u2013 3 mm | 0.03 u2013 3 mm |
| Diameter Increment | 0.01 mm | 0.01 mm |
| Diameter Tolerance | 0 / +0.003 mm | 0 / +0.003 mm |
| Shank Diameter | 3 mm (h6 tolerance) | 3 mm (h6 tolerance) |
| Point Angle | 118u00b0 (135u00b0 for diameters > 1mm) | 118u00b0 (135u00b0 for diameters > 1mm) |
Need a custom specification?
We manufacture bespoke carbide tools to your drawings — custom diameters, flute counts, coatings and tolerances.
