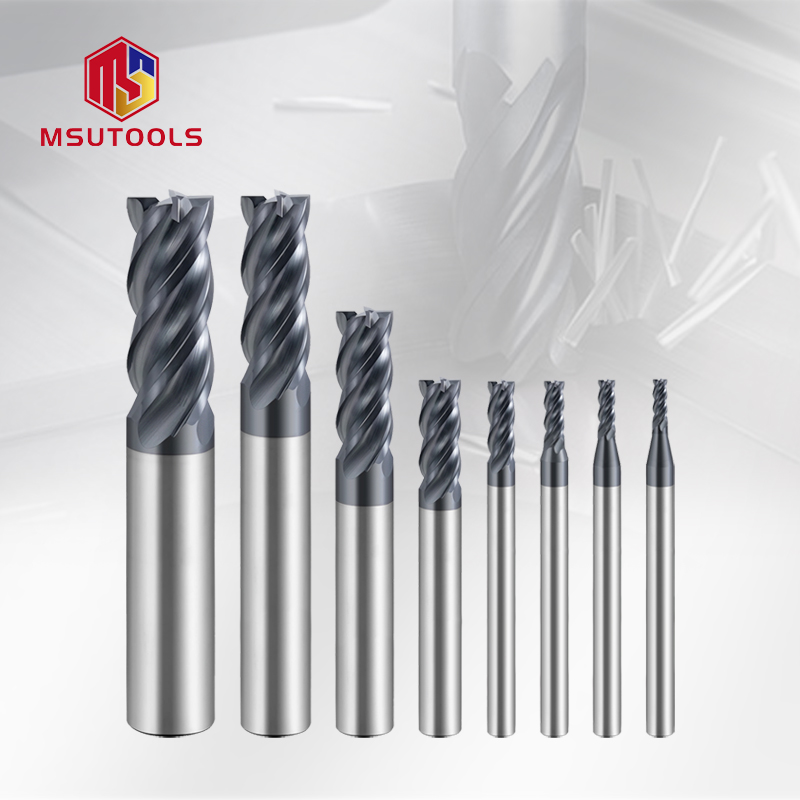

4-Flute End Mill for Stainless Steel
Our solid carbide end mills for stainless steel are specially designed for machining austenitic, martensitic, and duplex stainless steels. Featuring optimized edge geometry, high core strength, and heat-resistant nano coatings, they deliver excellent surface finish, extended tool life, and stable performance in both continuous and interrupted cuts.
Recommended Materials
- Ultra-fine grain solid carbide substrate
- Advanced PVD coating for heat & wear resistance
- Precision ground geometry, tight tolerances
- Custom sizes & OEM manufacturing available
Product Description
The 4-Flute End Mill for Stainless Steel is a high-performance solid carbide end mill engineered for precise, productive milling. Manufactured from premium ultra-fine grain tungsten carbide, it combines high hardness with the toughness needed for consistent, chatter-free cutting and a superior surface finish. It is optimized for machining stainless steel and steel.
Precision edge preparation and a carefully engineered helix angle reduce cutting forces and improve chip evacuation, allowing higher feed rates without sacrificing accuracy. An advanced PVD coating lowers friction and dissipates heat, extending tool life even in continuous production.
Key Features
- Sub-micron grain tungsten carbide substrate for an ideal balance of hardness and toughness
- Precision-ground cutting edges hold tight diametral tolerances for accurate, repeatable results

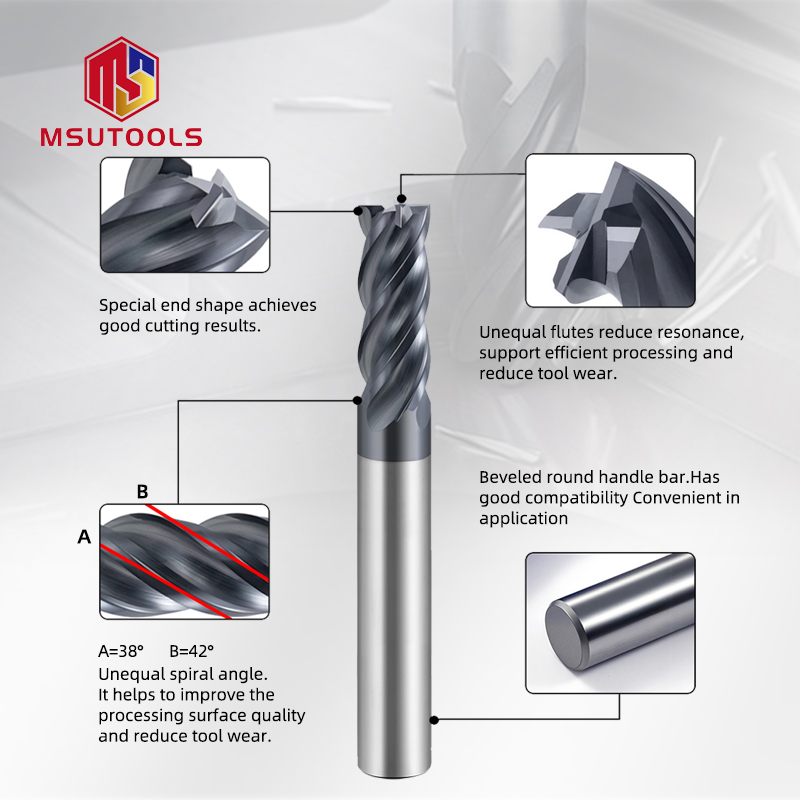

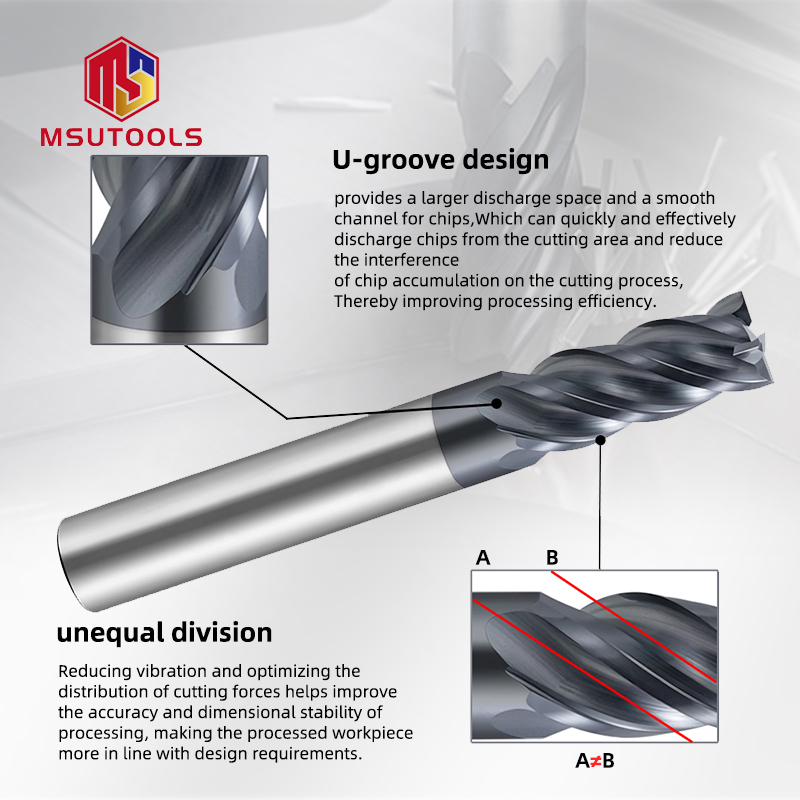

- Optimized helix angle evacuates chips cleanly and reduces cutting forces
- Advanced nano-coating lowers friction and resists heat for extended tool life
Applications
Ideal for CNC milling, slotting, profiling, contouring and finishing. MSU Tools also manufactures custom geometries, coatings and dimensions to suit your specific material and application — contact our engineering team to discuss your requirements.
Specifications
| Item | Description |
|---|---|
| Material | Ultra-fine grain carbide |
| Coating | TiAlSiN / AlCrN / Nano-coating |
| Flutes | 4 Variable Helix Anti-Vibration |
| Helix Angle | 38u00b0 / 42u00b0 / Variable |
| Type | Flat end / Ball nose / Corner radius |
| Work Material | SUS304 / SUS316 / Duplex / Martensitic SS |
| Operation | Roughing / Finishing / Slotting / Side Milling |
| Cutting Date | Vc=260-400 SFM, fz=0.003-0.006 IPT |
Need a custom specification?
We manufacture bespoke carbide tools to your drawings — custom diameters, flute counts, coatings and tolerances.
