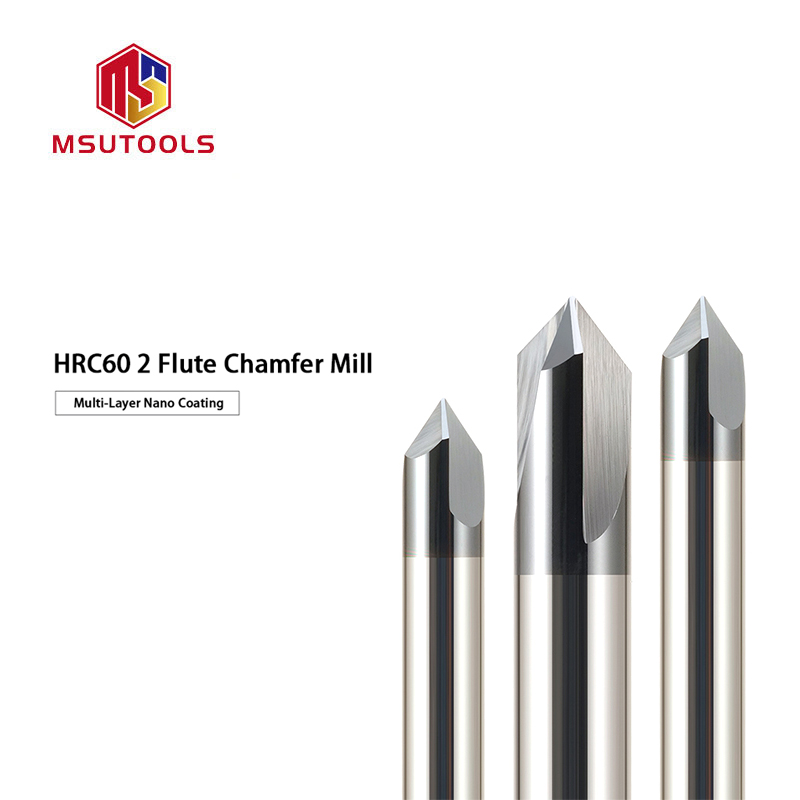

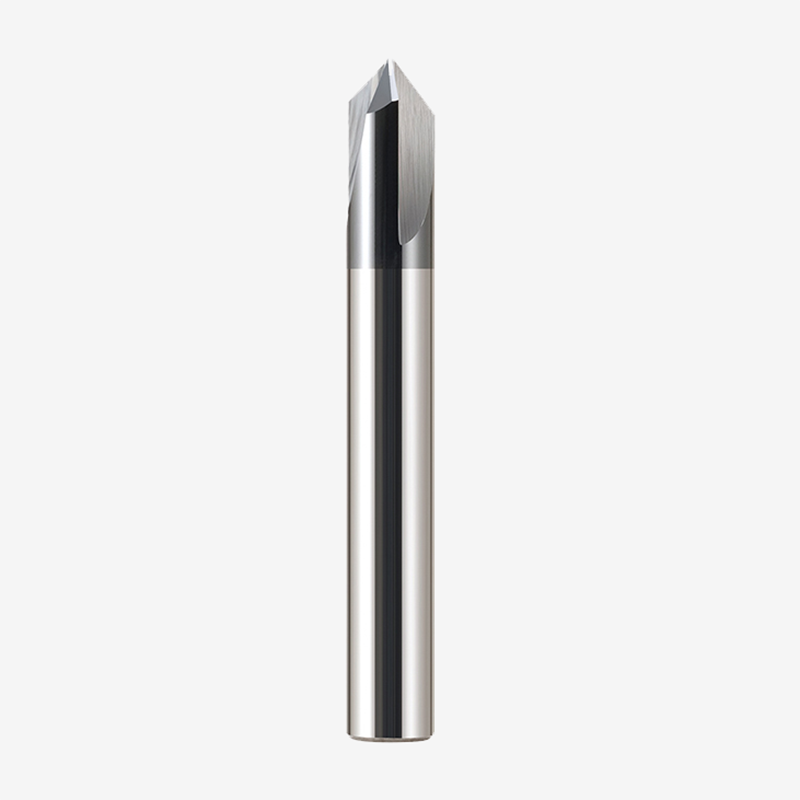

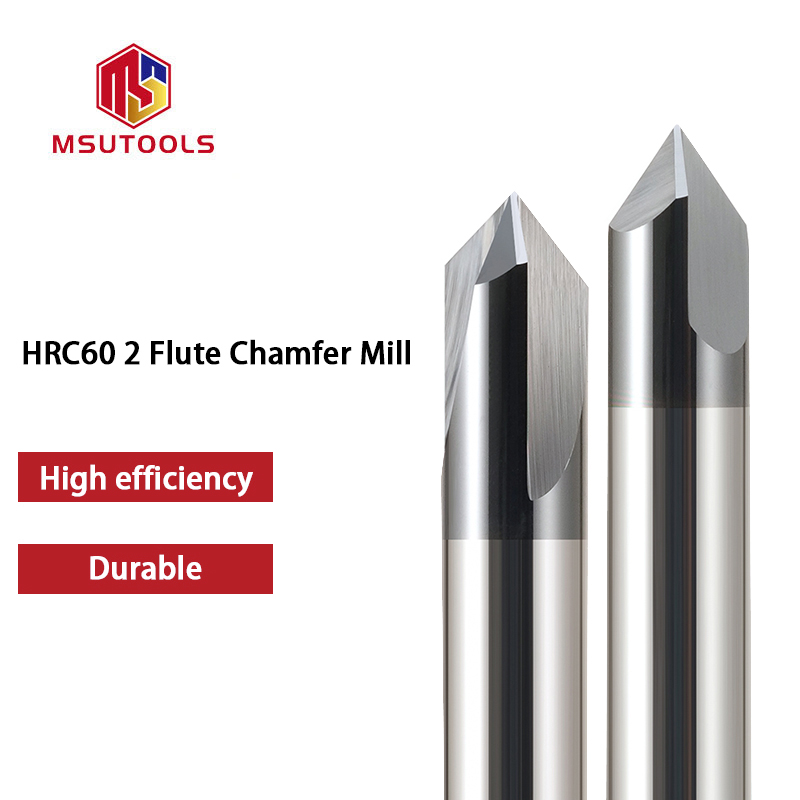

GPP Chamfer End Mill
High-performance carbide chamfer cutter CNC chamfer end mill for metal deburring, beveling & edge rounding. Available in 30°, 45°, 60° angles with durable TiAlN coating. Ideal for steel, aluminum, alloy, mold and automotive machining. Sharp cutting, smooth finish, long service life for precision workshop use.
Recommended Materials
- Ultra-fine grain solid carbide substrate
- Advanced PVD coating for heat & wear resistance
- Precision ground geometry, tight tolerances
- Custom sizes & OEM manufacturing available
Product Description
The GPP Chamfer End Mill is a high-performance solid carbide end mill engineered for precise, productive milling. Manufactured from premium ultra-fine grain tungsten carbide, it combines high hardness with the toughness needed for consistent, chatter-free cutting and a superior surface finish. It is optimized for machining aluminum, mold steel and steel.
Precision edge preparation and a carefully engineered helix angle reduce cutting forces and improve chip evacuation, allowing higher feed rates without sacrificing accuracy. An advanced PVD coating lowers friction and dissipates heat, extending tool life even in continuous production.
Key Features
- Sub-micron grain tungsten carbide substrate for an ideal balance of hardness and toughness
- Precision-ground cutting edges hold tight diametral tolerances for accurate, repeatable results
- Optimized helix angle evacuates chips cleanly and reduces cutting forces
- Advanced nano-coating lowers friction and resists heat for extended tool life
Applications
Ideal for CNC milling, slotting, profiling, contouring and finishing. MSU Tools also manufactures custom geometries, coatings and dimensions to suit your specific material and application — contact our engineering team to discuss your requirements.
Specifications
| Feature | MSU326 Series | MSU426 Series |
|---|---|---|
| Target Materials | Copper, Aluminum, Fiberglass, Engineering Plastics | Cast Steel, Alloy Steel, Cast Iron, Stainless Steel, Titanium Alloys |
| Coating | Uncoated | Nano-coated |
| Diameter Range | 0.03 u2013 3 mm | 0.03 u2013 3 mm |
| Diameter Increment | 0.01 mm | 0.01 mm |
| Diameter Tolerance | 0 / +0.003 mm | 0 / +0.003 mm |
| Shank Diameter | 3 mm (h6 tolerance) | 3 mm (h6 tolerance) |
| Point Angle | 118u00b0 (135u00b0 for diameters > 1mm) | 118u00b0 (135u00b0 for diameters > 1mm) |
Need a custom specification?
We manufacture bespoke carbide tools to your drawings — custom diameters, flute counts, coatings and tolerances.
