Endmills For Titanium
High-Performance End Mills for Titanium Machining Maximize efficiency with our premium end mills for titanium. Designed for high heat resistance, superior wear durability, and optimized chip evacuation, these tools ensure precise and smooth cutting in demanding applications. Perfect for aerospace, medical, and high-performance machining. Explore our selection today!
Recommended Materials
- Ultra-fine grain solid carbide substrate
- Advanced PVD coating for heat & wear resistance
- Precision ground geometry, tight tolerances
- Custom sizes & OEM manufacturing available
Product Description

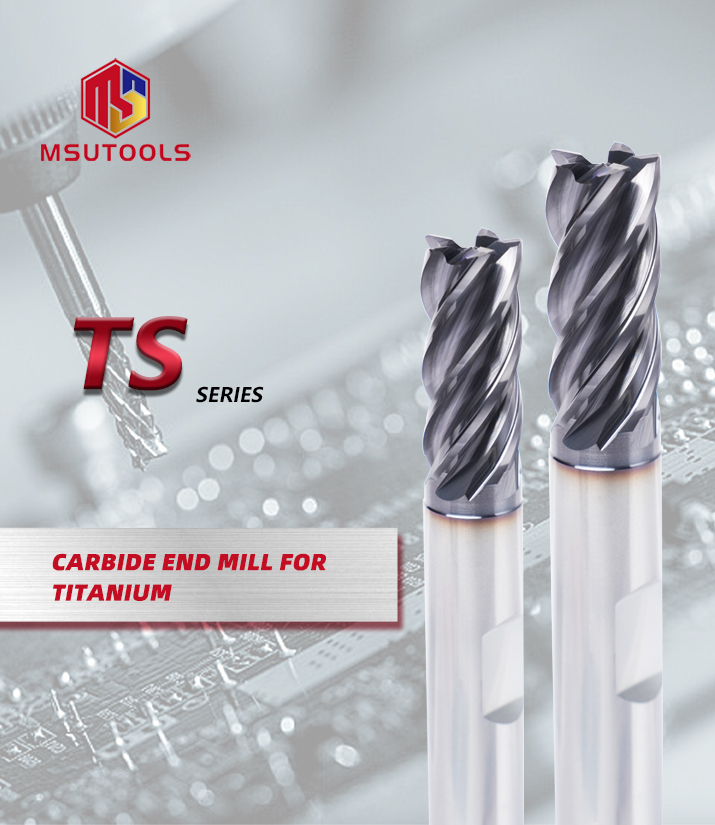

The Endmills For Titanium is a high-performance solid carbide end mill engineered for precise, productive milling. Manufactured from premium ultra-fine grain tungsten carbide, it combines high hardness with the toughness needed for consistent, chatter-free cutting and a superior surface finish. It is optimized for machining titanium, mold steel and hardened steel.
Precision edge preparation and a carefully engineered helix angle reduce cutting forces and improve chip evacuation, allowing higher feed rates without sacrificing accuracy. An advanced PVD coating lowers friction and dissipates heat, extending tool life even in continuous production.
Key Features
- Sub-micron grain tungsten carbide substrate for an ideal balance of hardness and toughness
- Precision-ground cutting edges hold tight diametral tolerances for accurate, repeatable results
- Optimized helix angle evacuates chips cleanly and reduces cutting forces
- Advanced nano-coating lowers friction and resists heat for extended tool life
Applications
Ideal for CNC milling, slotting, profiling, contouring and finishing. MSU Tools also manufactures custom geometries, coatings and dimensions to suit your specific material and application — contact our engineering team to discuss your requirements.
Specifications
| Item | Description |
|---|---|
| Material | Ultra-fine grain carbide |
| Coating | AlCrN / TiSiN / TiAlN Coating |
| Flutes | 4 Variable Helix Anti-Vibration |
| Helix Angle | 38u00b0 Variable |
| Type | Flat end / Ball nose / Corner radius |

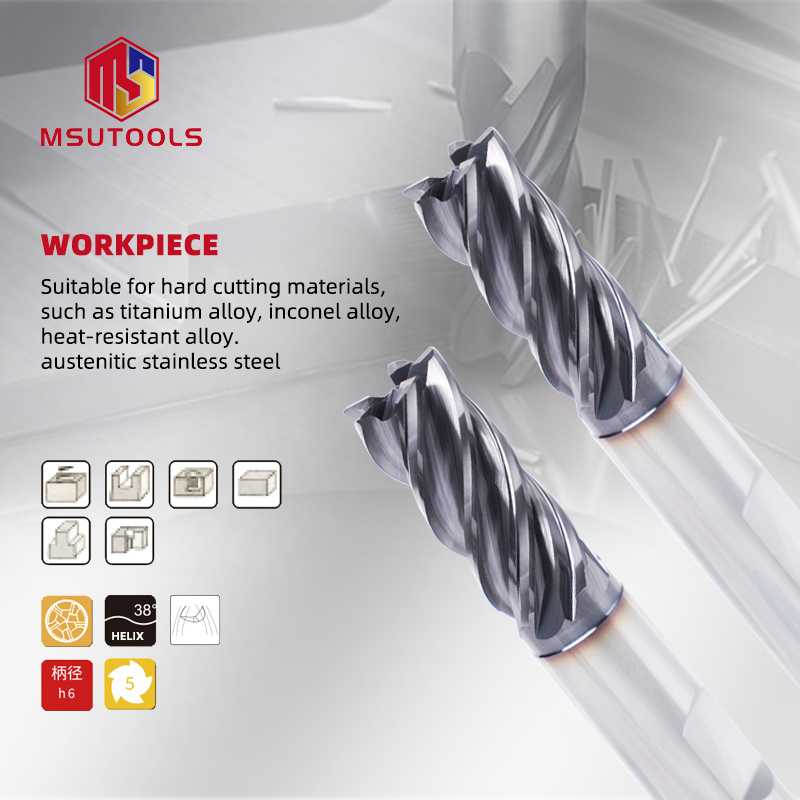

| Work Material | Titanium Alloys such as Ti6Al4V, TC4, TC11, and High-Temperature Alloys |
| Operation | Roughing / Finishing / Slotting / Side Milling |
| Cutting Date | Vc=260-400 SFM, fz=0.003-0.006 IPT |
Need a custom specification?
We manufacture bespoke carbide tools to your drawings — custom diameters, flute counts, coatings and tolerances.
